Introduction of cervical fusion cage instrument set
The cervical fusion cage instrument set is a specialized surgical tool designed for spinal fusion surgery, especially suitable for the cervical spine. This instrument set plays an important role in treating various cervical spine diseases, including degenerative disc disease, disc herniation, and spinal instability. The main purpose of using cervical fusion cage is to provide structural support for adjacent vertebrae bodies and promote their fusion, ultimately restoring spinal stability and function.
The cervical cage instrument set typically include various tools required for implanting cervical cage, such as retractors, drills, and screwdrivers. These instruments are carefully designed to achieve precise surgical procedures and minimize damage to surrounding tissue. The cervical cage itself is typically made of biocompatible materials such as titanium or PEEK (polyetheretherketone), which are known for their strength and
ability to bond with bone.

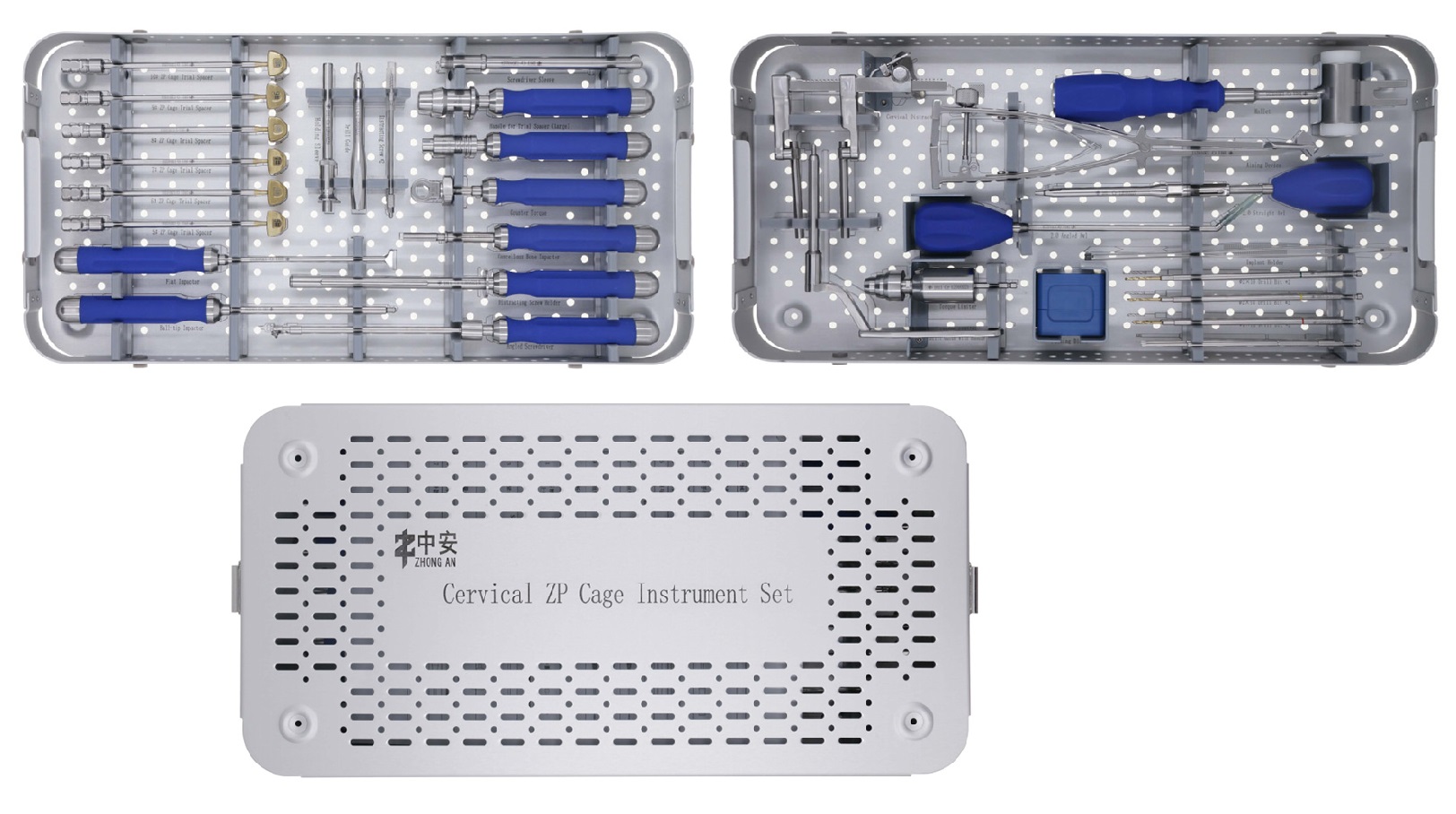

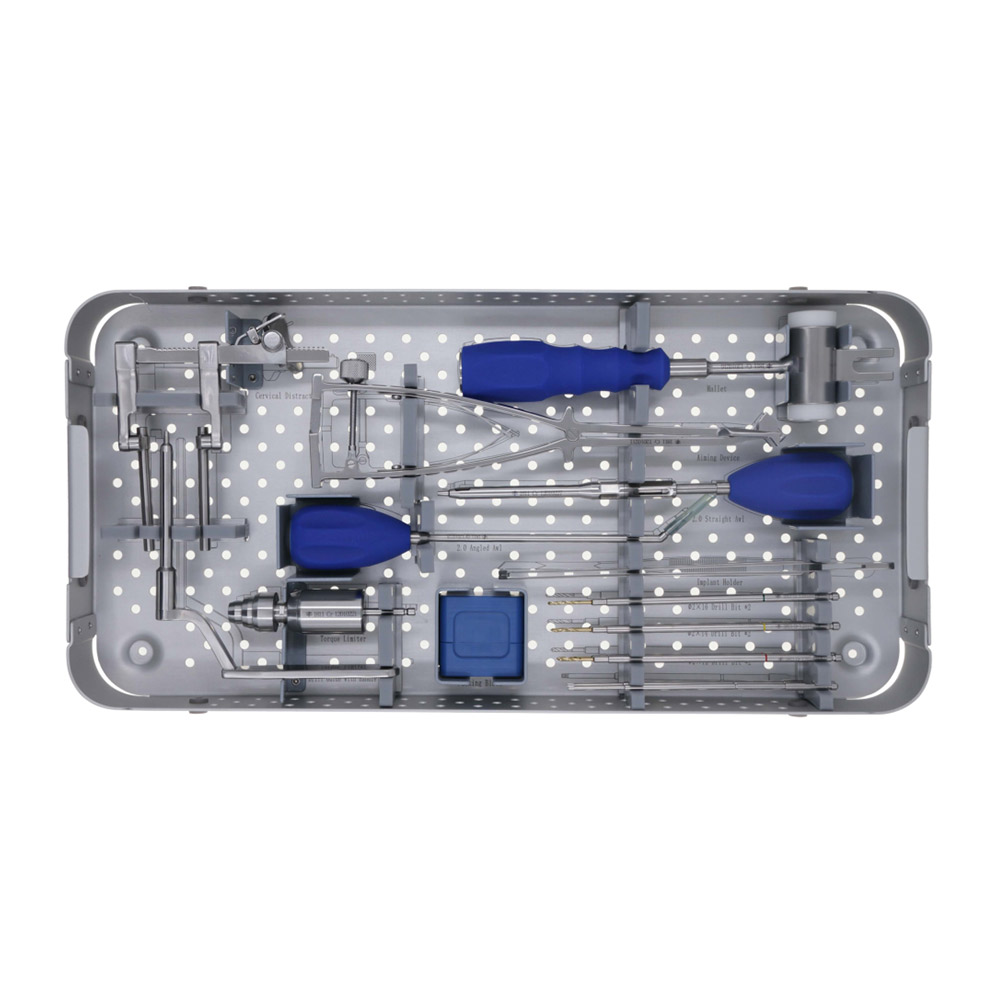

ZP Cervical Cage Instrument Set | |||
Product Code | Product Name | Specification | Quantity |
12010200 | ZP Cage Trial Spacer | 5 | 1 |
12010201 | ZP Cage Trial Spacer | 6 | 1 |
12010202 | ZP Cage Trial Spacer | 7 | 1 |
12010203 | ZP Cage Trial Spacer | 8 | 1 |
12010204 | ZP Cage Trial Spacer | 9 | 1 |
12010205 | ZP Cage Trial Spacer | 10 | 1 |
12010206 | Handle for Trial Spacer | Large | 1 |
12010207 | Drill Guide | 1 | |
12010208 | Ball-tip Impactor | 1 | |
12010209 | Trial Module | 1 | |
12010210 | Implant Holder | 1 | |
12010211 | Aiming Device | 1 | |
12010212 | Flat Impactor | 1 | |
12010213 | Cancellous Bone Impactor | 1 | |
12010214 | Distracting Screw Holder | 1 | |
12010215 | Distracting Screw | 2 | |
12010216 | Mallet | 1 | |
12010217 | Drill Bit | Ф2.0 x 12mm | 2 |
12010218 | Drill Bit | Ф2.0 x 14mm | 2 |
12010219 | Drill Bit | Ф2.0 x 16mm | 2 |
12010231 | Drill Bit | Ф2.0 x 18mm | 2 |
12010220 | Screwdriver Shaft | T8 (Self-holding) | 2 |
12010221 | Torque Limiter | 1.2Nm | 1 |
12010222 | Counter Torque | 1 | |
12010223 | Screwdriver Sleeve | 1 | |
12010224 | Quick-Coupling Handle | Small | 1 |
12010225 | Angled Screwdriver | 1 | |
12010226 | Cervical Distractor | 1 | |
12010227 | Straight Awl | Ф2 | 1 |
12010228 | Angled Awl | Ф2 | 1 |
12010229 | Holding Sleeve | 1 | |
12010230 | Drill Guide with Handle | 1 | |

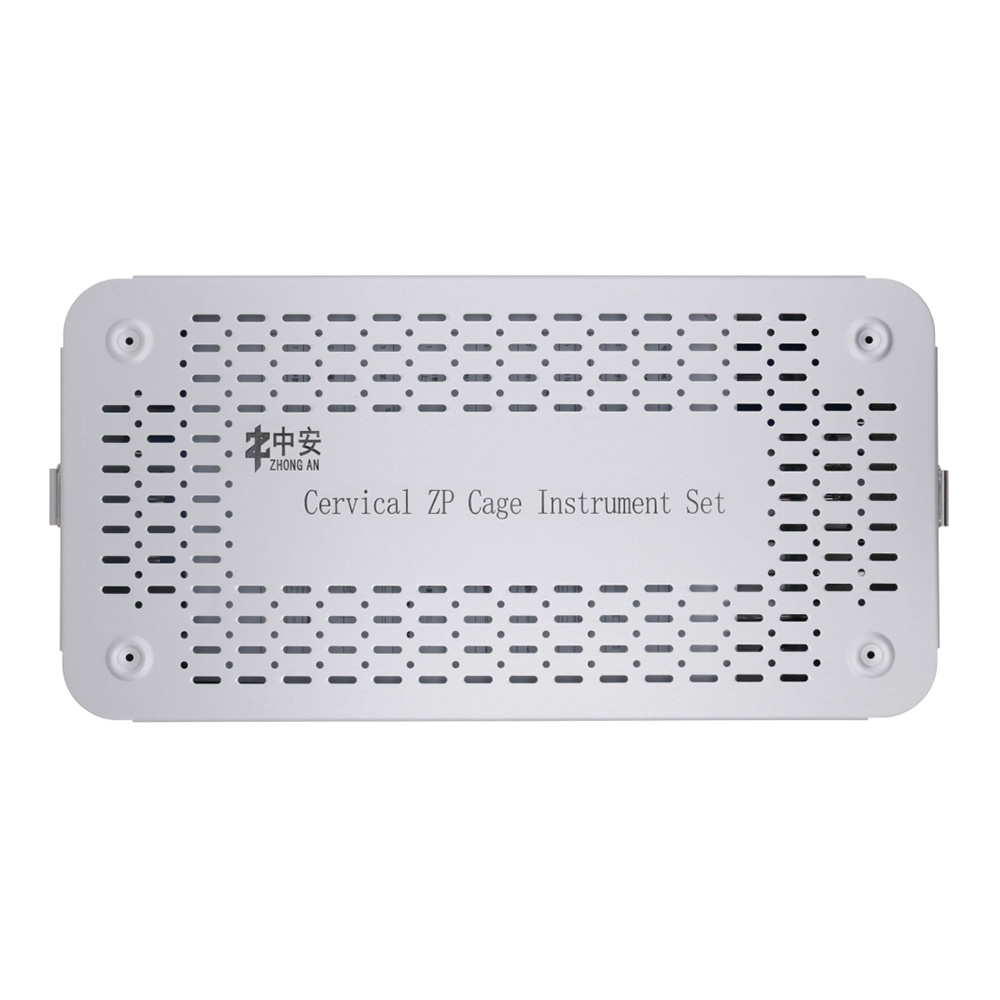

93340000B | Instrument Box | 1 |
