MASFIN Expert Femur Intramedullary Nail Instrument Set
What is the MASFIN Femoral Nail Instrument Set?
The MASFIN femoral nail instrument is a surgical kit specifically designed for fixing femoral fractures. This innovative instrument kit is essential for orthopedic surgeons to perform intramedullary nail surgery, which is commonly used to treat femoral fractures, especially those that are complex or unstable.

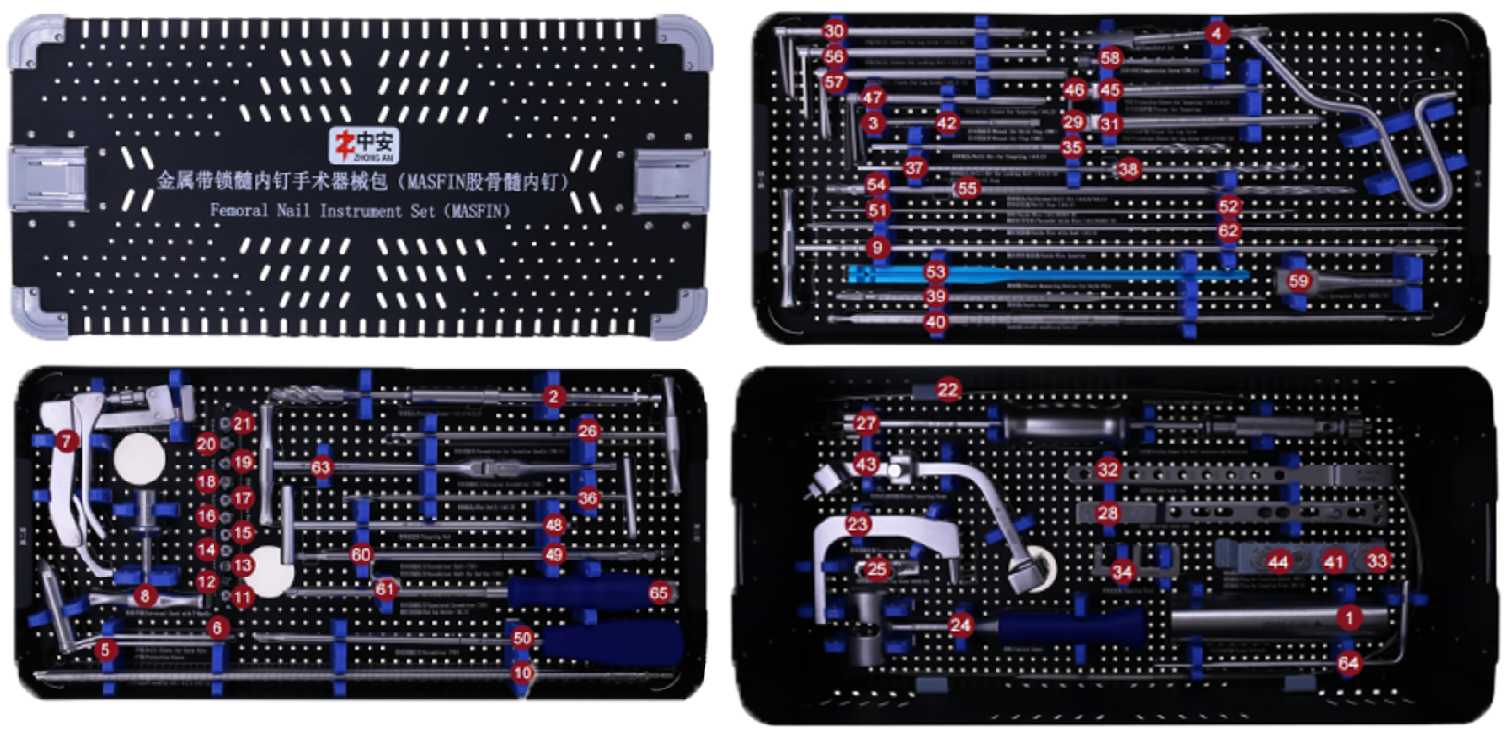

| Femoral Nail Instrument Set （MASFIN） | ||||
| Serial No. | English Name | Product Code | Specification | Quantity |
| 1 | Tissue Protector | 16050001 | 1 | |
| 2 | Proximal Reamer | 16050002 | ∅2.5/∅13.8 | 1 |
| 3 | Wrench for Drill Stop | 16050003 | SW3 | 1 |
| 4 | Cannulated Awl | 16050004 | 1 | |
| 5 | Drill Sleeve for Guide Wire | 16050005 | 1 | |
| 6 | Protection Sleeve | 16050006 | 1 | |
| 7 | Guide Wire Extractor | 16050007 | 1 | |
| 8 | Universal Chuck with T-Handle | 16050008 | 1 | |
| 9 | Guide Wire Inserter | 16050009 | 1 | |
| 10 | Reaming Rod | 16050010 | φ2.5/φ8 | 2 |
| 11 | Reamer Drill Bit | 16050011 | ∅8 | 1 |
| 12 | Reamer Drill Bit | 16050012 | ∅8.5 | 1 |
| 13 | Reamer Drill Bit | 16050013 | ∅9 | 1 |
| 14 | Reamer Drill Bit | 16050014 | ∅9.5 | 1 |
| 15 | Reamer Drill Bit | 16050015 | ∅10 | 1 |
| 16 | Reamer Drill Bit | 16050016 | ∅10.5 | 1 |
| 17 | Reamer Drill Bit | 16050017 | ∅11 | 1 |
| 18 | Reamer Drill Bit | 16050018 | ∅11.5 | 1 |
| 19 | Reamer Drill Bit | 16050019 | ∅12 | 1 |
| 20 | Reamer Drill Bit | 16050020 | ∅12.5 | 1 |
| 21 | Reamer Drill Bit | 16050021 | ∅13 | 1 |
| 22 | Guide Wire with Ball Head | 16050022 | ∅2.5/∅4 | 2 |
| 23 | Insertion Handle | 16050023 | 1 | |
| 24 | Combined Hammer | 16050024 | 1 | |
| 25 | Connecting Screw | 16050025 | M8X0.75 | 2 |
| 26 | Screwdriver for Insertion Handle | 16050026 | SW6.5 | 1 |
| 27 | Sliding Hammer for Nail Insertion and Extraction | 16050027 | 1 | |
| 28 | Proximal Guide Arm | 16050028 | 1 | |
| 29 | Trocar for Lag Screw | 16050029 | 1 | |
| 30 | Drill Sleeve for Lag Screw | 16050030 | ∅4.2 | 2 |
| 31 | Protection Sleeve for Lag Screw | 16050031 | ∅8.3/∅10 | 2 |
| 32 | Distal Guide Arm | 16050032 | 1 | |
| 33 | Nut for Guide Arm | 16050033 | M8*1 | 1 |
| 34 | Targeting Block | 16050034 | 1 | |
| 35 | Drill Bit for Trageting | 16050035 | ∅5.2 | 1 |
| 36 | Flat Drill | 16050036 | ∅5.2 | 1 |
| 37 | Drill Bit for Locking Bolt | 16050037 | ∅4.2 | 3 |
| 38 | Drill Stop | 16050038 | 1 | |
| 39 | Depth Gauge | 16050039 | 1 | |
| 40 | Direct Measuring Device | 16050040 | 1 | |
| 41 | Plug for Insertion Handle | 16050041 | M8*1 | 1 |
| 42 | Wrench for Plug | 16050042 | SW5 | 1 |
| 43 | Distal Targeting Frame | 16050043 | 1 | |
| 44 | Plug for Targeting Frame | 16050044 | M6 | 2 |
| 45 | Protection Sleeve for Targeting | 16050045 | ∅8.1/∅10 | 1 |
| 46 | Trocar for Targeting | 16050046 | 1 | |
| 47 | Drill Sleeve for Targeting | 16050047 | ∅5.2 | 1 |
| 48 | Targeting Rod | 16050048 | 1 | |
| 49 | Screwdriver Shaft | 16050049 | T25 | 1 |
| 50 | Screwdriver | 16050050 | T25 | 1 |
| 51 | Guide Wire | 16050051 | ∅2.5*320 | 3 |
| 52 | Threaded Guide Wire | 16050052 | ∅2.5*320 | 3 |
| 53 | Direct Measuring Device for Guide Wire | 16050053 | 1 | |
| 54 | Calibrated Drill Bit | 16050054 | ∅4.6/∅6.4 | 1 |
| 55 | Drill Stop | 16050055 | ∅6.4 | 1 |
| 56 | Drill Sleeve for Locking Bolt | 16050056 | ∅2.5 | 2 |
| 57 | Drill Sleeve for Lag Screw | 16050057 | ∅6.4 | 2 |
| 58 | Compression Screw | 16050058 | SW6.5 | 1 |
| 59 | Nail Extractor Shaft | 16050059 | M8X0.75 | 1 |
| 60 | Screwdriver Shaft for End Cap | 16050060 | T40 | 1 |
| 61 | Cannulated Screwdriver | 16050061 | T40 | 1 |
| 62 | Guide Wire with Hook | 16050062 | φ2.8 | 1 |
| 63 | Universal Screwdriver | 16050063 | T40 | 1 |
| 64 | Provisional Fixation Rod | 16050064 | φ4.2 | 1 |
| 65 | End Cap Holder | 16050065 | M3.5 | 1 |
| 66 | Instrument Box | 16050066 | 1 | |
