Surgical InterZan Intramedullary Nail Instrument Set
What is the InterZan Intramedullary Nail Instrument Set?
The InterZan intramedullary nail istrument is a surgical tool specifically designed to fix long bone fractures. This innovative set of instruments is mainly used in orthopedic surgery, providing surgeons with the necessary tools to effectively perform intramedullary nail surgery. Intramedullary nail is a commonly used technique for fixing femoral, tibial, and humeral fractures, which helps achieve optimal healing and recovery.

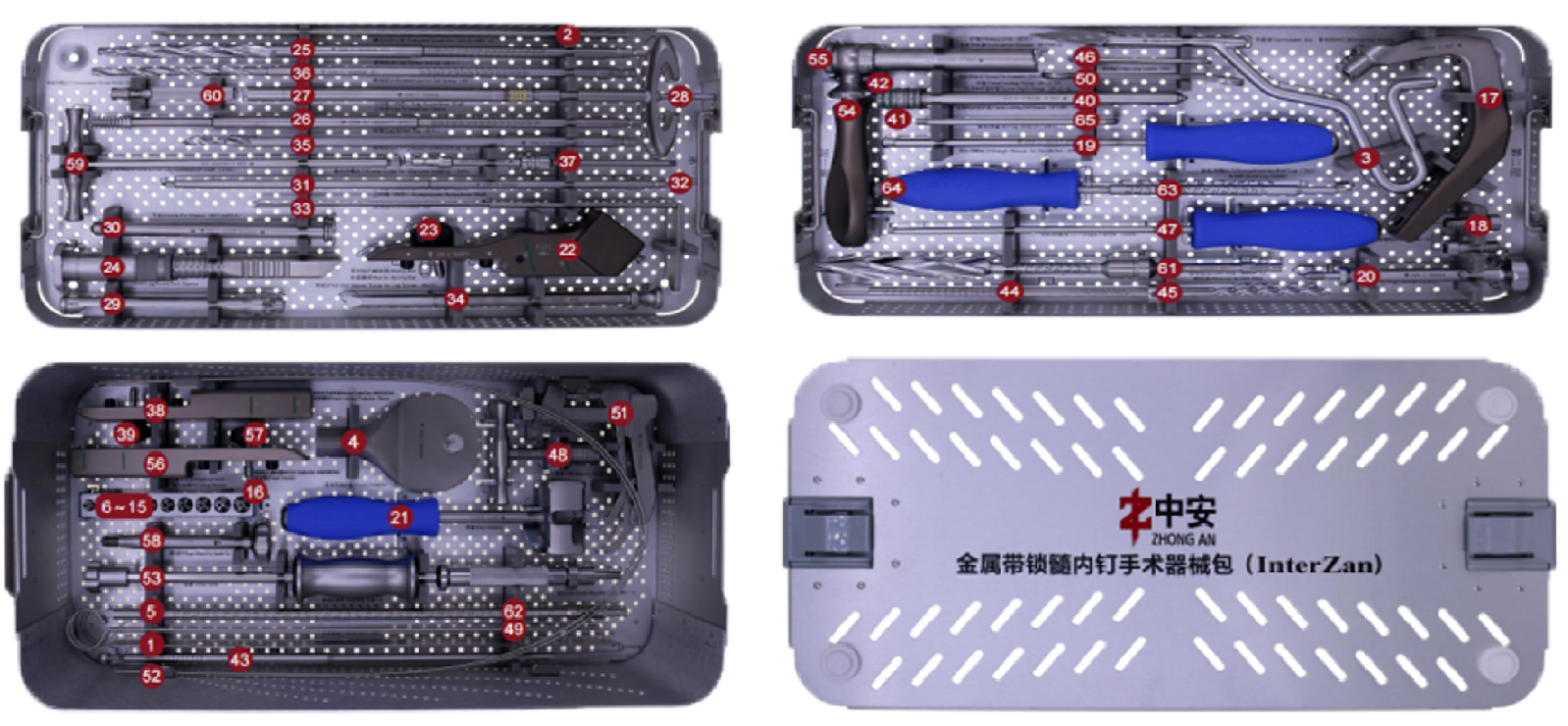

| Intramedullary Nail Instrument Set （InterZan） | ||||
| Serial No. | English Name | Product Code | Specification | Quantity |
| 1 | Radiographic Ruler | 16020001 | 1 | |
| 2 | Threaded Guide Wire | 16020002 | φ3.2 x 350mm | 4 |
| 3 | Cannulated Awl | 16020005 | 1 | |
| 4 | Tissue Protector | 16020006 | 1 | |
| 5 | Reamer Drill Shaft | 16020008 | 1 | |
| 6 | Reamer Drill Bit | 16030009-01 | Ф8.5 | 1 |
| 7 | Reamer Drill Bit | 16030009-02 | Ф9.0 | 1 |
| 8 | Reamer Drill Bit | 16030009-03 | Ф9.5 | 1 |
| 9 | Reamer Drill Bit | 16030009-04 | Ф10.0 | 1 |
| 10 | Reamer Drill Bit | 16030009-05 | Ф10.5 | 1 |
| 11 | Reamer Drill Bit | 16030009-06 | Ф11.0 | 1 |
| 12 | Reamer Drill Bit | 16030009-07 | Ф11.5 | 1 |
| 13 | Reamer Drill Bit | 16030009-08 | Ф12.0 | 1 |
| 14 | Reamer Drill Bit | 16030009-09 | Ф12.5 | 1 |
| 15 | Reamer Drill Bit | 16030009-10 | Ф13.0 | 1 |
| 16 | Reaming Module | 16020009-11 | 1 | |
| 17 | Insertion Handle | 16020010 | with 2 Connection Bolts | 1 |
| 18 | Handle Nut | 16020010-01 | 2 | |
| 19 | Screwdriver | 16020011 | SW8.0 | 1 |
| 20 | Handle Impactor | 16020012 | 1 | |
| 21 | Hammer | 16020013 | 1 | |
| 22 | Aiming Bar | 16020014 | 1 | |
| 23 | Nut for Aiming Bar | 16020062 | 1 | |
| 24 | Lag Screw Drill Sleeve | 16020015 | 1 | |
| 25 | Lag Screw Drill Bit | 16020016 | φ11 | 1 |
| 26 | Lag Screw Tap | 16020017 | φ11 | 1 |
| 27 | Lag Screwdriver Sleeve | 16020018 | 1 | |
| 28 | Lag Screwdriver Shaft | 16020018-01 | 1 | |
| 29 | Lag Screw Length Gauge | 16020019 | 1 | |
| 30 | Guide Pin Sleeve | 16020020 | φ11.2/φ3.2 | 1 |
| 31 | Compression Screwdriver Sleeve | 16020021 | 1 | |
| 32 | Compression Screwdriver Shaft | 16020021-01 | 1 | |
| 33 | Anti-Rotation Bar | 16020022 | 1 | |
| 34 | Pilot Drill Sleeve Trocar for Lag Screw | 16020023 | φ4.3 | 1 |
| 35 | Compression Screw Starter Drill | 16020025 | φ7.0 | 1 |
| 36 | Compression Screw Drill | 16020026 | φ7.0 | 1 |
| 37 | Screwdriver for Set Screw | 16020027 | SW5.0 | 1 |
| 38 | Distal Guide Bar (Dynamic Locking) | 16020028 | 180/200/240 | 1 |
| 39 | Nut for Guide Bar | 16020062 | 1 | |
| 40 | Protection Sleeve | 16020029 | Ф11.0/Ф8.0 | 2 |
| 41 | Drill Sleeve | 16020030 | Ф4.2 | 2 |
| 42 | Trocar | 16020031 | Ф4.2 | 2 |
| 43 | Screw Depth Gauge | 16020032 | 1 | |
| 44 | Distal Locking Drill Bit | 16020033 | Ф4.2 | 2 |
| 45 | Drill Stop | 16020033-01 | Ф4.2 | 1 |
| 46 | Stop Wrench | 16020034 | SW3 | 1 |
| 47 | Screwdriver | 16020035 | SW4 | 1 |
| 48 | T-Shape Handle | 16020036 | 1 | |
| 49 | Cleaning Brush | 16020037 | 2 | |
| 50 | Wrench for End Cap | 16020038 | SW11 | 1 |
| 51 | Guide Pin Extractor | 16020039 | 1 | |
| 52 | Ball Tip Guide Pin | 16020040 | Ф4x1000mm | 2 |
| 53 | Slide Hammer | 16020047 | 1 | |
| 54 | Protection Sleeve | 16020048 | Ф17 | 1 |
| 55 | Drill Sleeve | 16020049 | Ф17/Ф3.2 | 1 |
| 56 | Distal Guide Bar (Static Locking) | 16020053 | 180/200/240 | 1 |
| 57 | Nut for Guide Bar | 16020062 | 1 | |
| 58 | Nail Extractor | 16020054 | 1 | |
| 59 | T-Shape Wrench for Handle Nut | 16020055 | SW8 | 1 |
| 60 | Wrench for Lag Screwdriver Shaft | 16020056 | 1 | |
| 61 | Compression Screw Starter Drill | 16020057 | Ф17 | 1 |
| 62 | Reaming Shaft | 16020058 | 1 | |
| 63 | Screwdriver for End Cap | 16020059 | T40 | 1 |
| 64 | End Cap Holder | 16020059-01 | 1 | |
| 65 | Plug Wrench | 16020060 | SW5 | 1 |
| 66 | 16020051 | 1 | ||
