New Product-Minimally Invasive Posterior Thoracolumbar Internal Fixation System-3-in-1 Screw-Rod System

ZATH, a leading manufacturer specializing in orthopedic implants, is pleased to announce the launch of Minimally Invasive Posterior Thoracolumbar Internal Fixation System-3-in-1 Screw-Rod System, This cutting-edge device offers a range of features that make it stand out in the market.

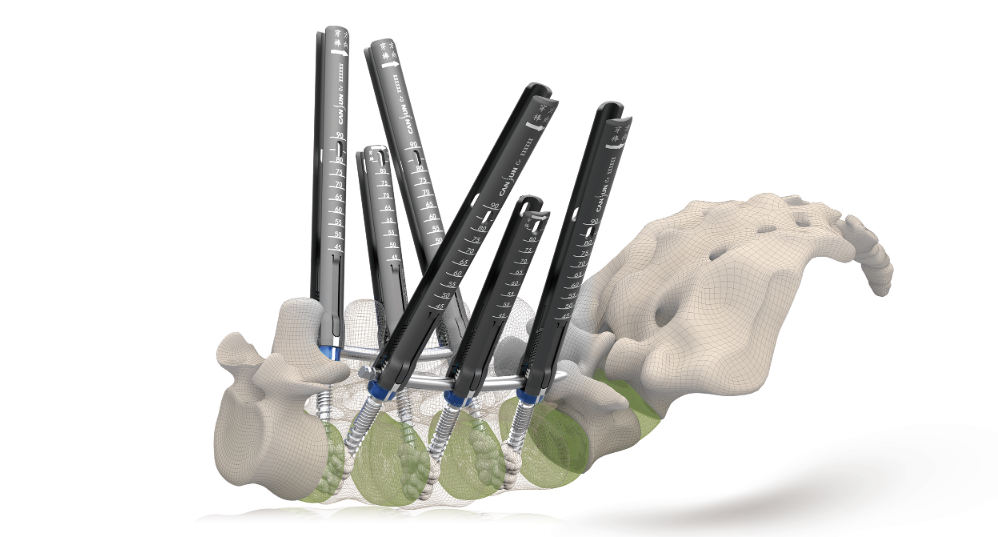

3-in-1 Screw-Rod System Features
Open Pedicle Screw Placement
Percutaneous MIS Pedicle Screw Placement
Cement Augmentation

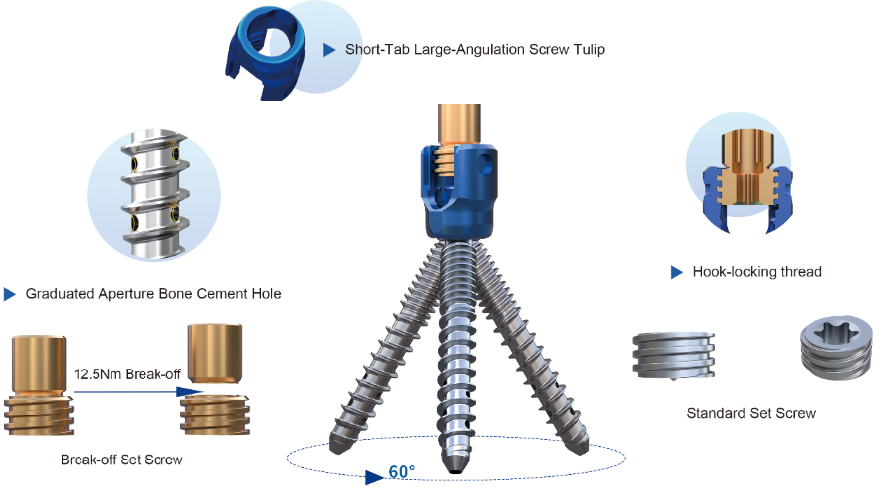

Pedicle Screw Features
Short-tab, hook-lock dual-thread design.
Tapered self-tapping screw, 60° large angulation.
Polyaxial screw, movable-head screw.

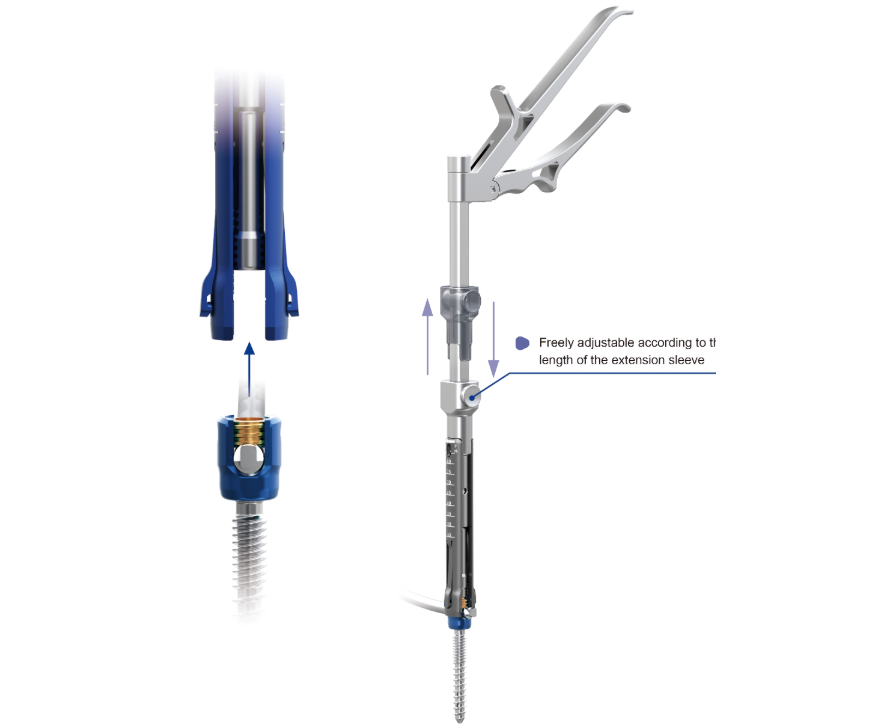

Detachable Extension Sleeve Features
Snap-on connection between sleeve spring tab and screw, no bending of tabs required.
Reusable extension sleeve reduces tedious operations.
Pull-to-reset can be directly achieved by the set screw press rod, no additional tools required.

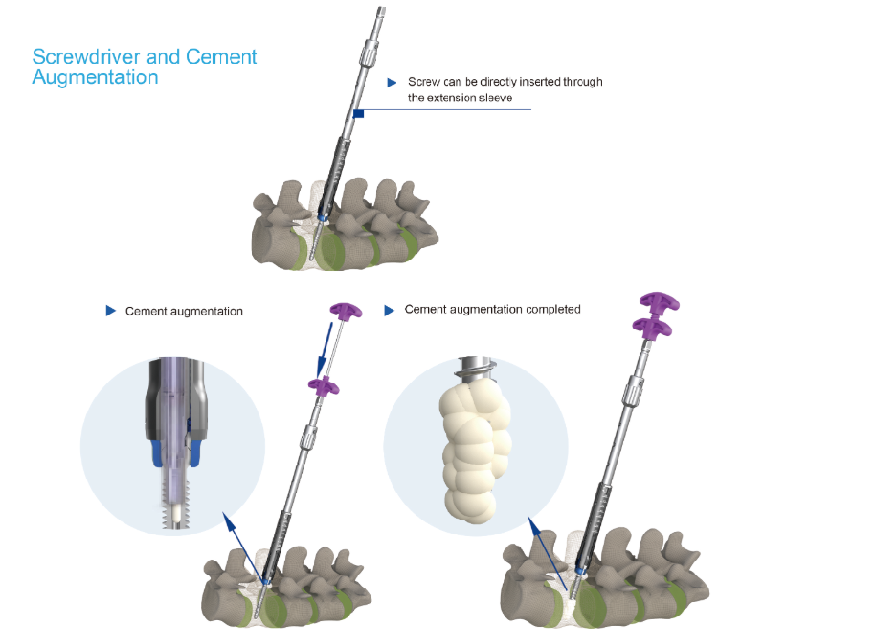

Screwdriver and Cement Augmentation Features
120° spiral distribution of bone cement holes with gradually changing diameters ensures uniform dispersion during bone cement injection.
Bone cement injection device designed to extend 5mm into the screw body, preventing cement leakage and ensuring safety.

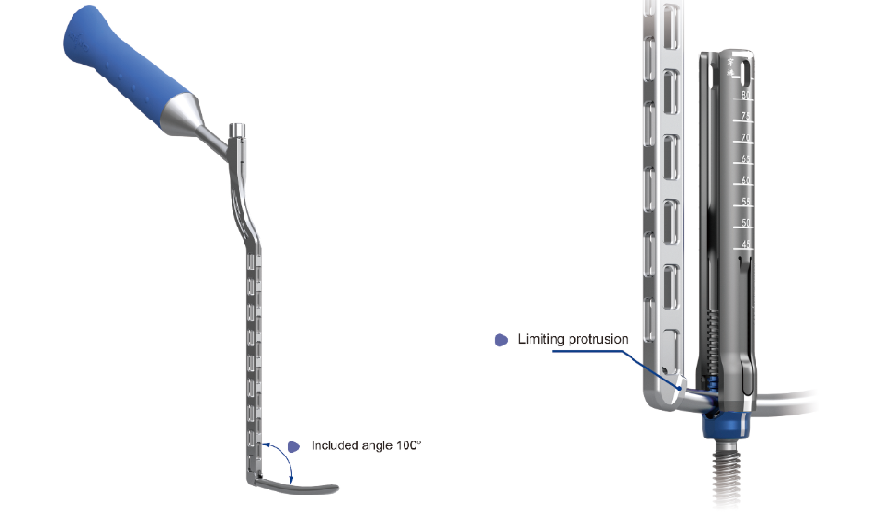

Rod Holder Features
The rod holder holds the rod at a 100° angle, facilitating rod insertion.
The rod holder has a limiting protrusion. After it is firmly seated against the extension sleeve, the remaining exposed portion of the rod tail (5mm) indicates the appropriate rod length.

Unlocking Gun Features
Designed in long and short versions to accommodate different lengths of extension sleeves.
Freely adjustable according to the length of the extension sleeve.
Enables quick unlocking of the extension sleeve.

ZATH understands the importance of customer satisfaction and always strives to exceed expectations, Reducing patients’ pain, restoring their motor functions and improving their quality of life have always been our mission.

If you want to learn more about the spine pedicle screw knowledge, please feel free to contact us; our team will provide you with the professional support and answers.
