The expert tibial nail instrument set is a surgical tool specifically designed for orthopedic surgery, especially for the fixation of tibial fractures. For orthopedic surgeons dedicated to providing effective and reliable treatment for patients with complex tibial injuries, this set of instruments is essential.
This intramedullary nail instrument typically includes multiple tools to assist with the insertion and operation of intramedullary nails. Intramedullary nail is a long and thin rod inserted into the medullary cavity of the tibia, providing internal support and stabilizing the bone during the healing process. The expert tibial nail instrument aims to improve the accuracy and efficiency of surgery, ensuring optimal alignment and stability of fractured bones.

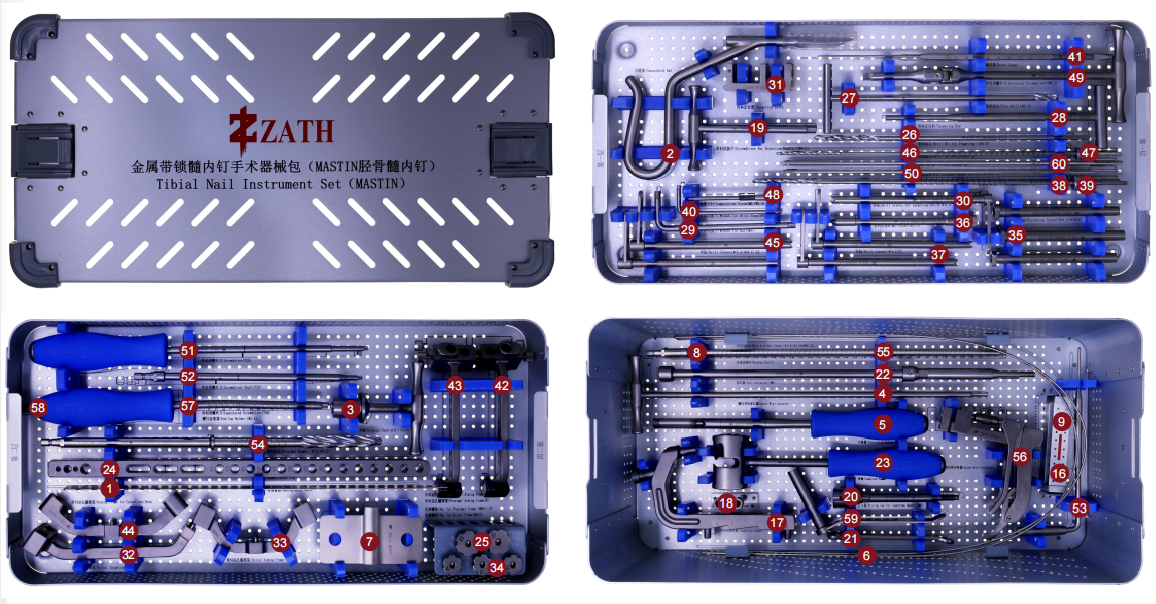

| Tibial Nail Instrument Set (MASTIN) | ||||
| Serial No. | English Name | Product Code | Specification | Quantity |
| 0 | Radiographic Ruler | 16040001 | 1 | |
| 1 | Cannulated Awl | 16040002 | 1 | |
| 2 | Universal Chuck with T-Handle | 16040005 | 1 | |
| 3 | Guide Wire Inserter | 16040007 | 1 | |
| 4 | Cannulated Cutter | 16040008 | 1 | |
| 5 | Guide Wire with Ball Head | 16040009 | φ2.5/φ3.5*1000 | 2 |
| 6 | Tissue Protector | 16040010 | 1 | |
| 7 | Reaming Rod | 16040011 | 1 | |
| 8 | Reamer Drill Bit | 16040012 | φ7.5 | 1 |
| 9 | Reamer Drill Bit | 16040013 | φ8 | 1 |
| 10 | Reamer Drill Bit | 16040014 | φ8.5 | 1 |
| 11 | Reamer Drill Bit | 16040015 | φ9 | 1 |
| 12 | Reamer Drill Bit | 16040016 | φ9.5 | 1 |
| 13 | Reamer Drill Bit | 16040017 | φ10 | 1 |
| 14 | Reamer Drill Bit | 16040018 | φ10.5 | 1 |
| 15 | Reamer Drill Bit | 16040019 | φ11 | 1 |
| 16 | Insertion Handle | 16040020 | 1 | |
| 17 | Connecting Screw | 16040021 | M8 | 2 |
| 18 | Screwdriver for Insertion Handle | 16040022 | SW6.5 | 1 |
| 19 | Driving Cap for Insertion Handle | 16040023 | M8 | 1 |
| 20 | Combination Wrench | 16040024 | SW11 | 1 |
| 21 | Nail Extractor | 16040025 | M8 | 1 |
| 22 | Combined Hammer | 16040026 | 1 | |
| 23 | Guide Arm | 16040027 | 1 | |
| 24 | Nut for Proximal Frame | 16040028 | M8*1 | 2 |
| 25 | Drill Bit for Trageting | 16040029 | φ5.0 | 1 |
| 26 | Flat Drill | 16040030 | φ5.0 | 1 |
| 27 | Targeting Rod | 16040031 | 1 | |
| 28 | Wrench for Nut | 16040032 | SW5 | 1 |
| 29 | Drill Sleeve for Targeting | 16040033 | φ5.0/φ8.1 | 1 |
| 30 | Targeting Block | 16040034 | 1 | |
| 31 | Distal Targeting Frame | 16040035 | 1 | |
| 32 | Distal Aiming Frame | 16040036 | 1 | |
| 33 | Nut for Distal Frame | 16040037 | M6 | 3 |
| 34 | Protection Sleeve | 16040038 | φ8.1/φ10 | 3 |
| 35 | Trocar | 16040039 | φ8.1 | 1 |
| 36 | Drill Sleeve | 16040040 | φ4.2 | 2 |
| 37 | Drill Bit | 16040042 | φ4.2*350 | 2 |
| 38 | Drill Stop | 16040043 | φ4.2 | 1 |
| 39 | Wrench for Drill Stop | 16040044 | SW3 | 1 |
| 40 | Depth Gauge | 16040045 | 1 | |
| 41 | Proximal Aiming Frame | 16040046 | R | 1 |
| 42 | Proximal Aiming Frame | 16040047 | L | 1 |
| 43 | Aiming Frame for Cancellous Bone | 16040048 | 1 | |
| 44 | Drill Sleeve | 16040049 | φ3.2/φ8.1 | 2 |
| 45 | Drill Bit | 16040051 | φ3.2*320 | 2 |
| 46 | Drill Stop | 16040052 | φ3.2 | 1 |
| 47 | Compression Screw | 16040053 | M6/SW6.5 | 1 |
| 48 | Universal Screwdriver | 16040054 | SW6.5 | 1 |
| 49 | Threaded Guide Wire | 16040056 | φ3.2*320 | 2 |
| 50 | Screwdriver | 16040057 | T25 | 1 |
| 51 | Screwdriver Shaft | 16040058 | T25 | 1 |
| 52 | Provisional Fixation Rod | 16040060 | φ3.2 | 1 |
| 53 | Proximal Reamer | 16040064 | φ12/φ3.2 | 1 |
| 54 | Reaming Rod | 16040065 | 1 | |
| 55 | Guide Wire Extractor | 16040066 | 1 | |
| 56 | Cannulated Screwdriver | 16040067 | T40 | 1 |
| 57 | End Cup Holder | 16040067-01 | M3.5 | 1 |
| 58 | Protection Sleeve | 16040068 | φ12 | 1 |
| 59 | 16040062 | 1 | ||
