Tibial intramedullary nail is an orthopedic implant specifically designed to stabilize and support fractures of the tibia (the larger bone in the lower leg). This surgical technique is popular because it is minimally invasive, promotes effective fracture healing, and allows for early mobilization of the patient.

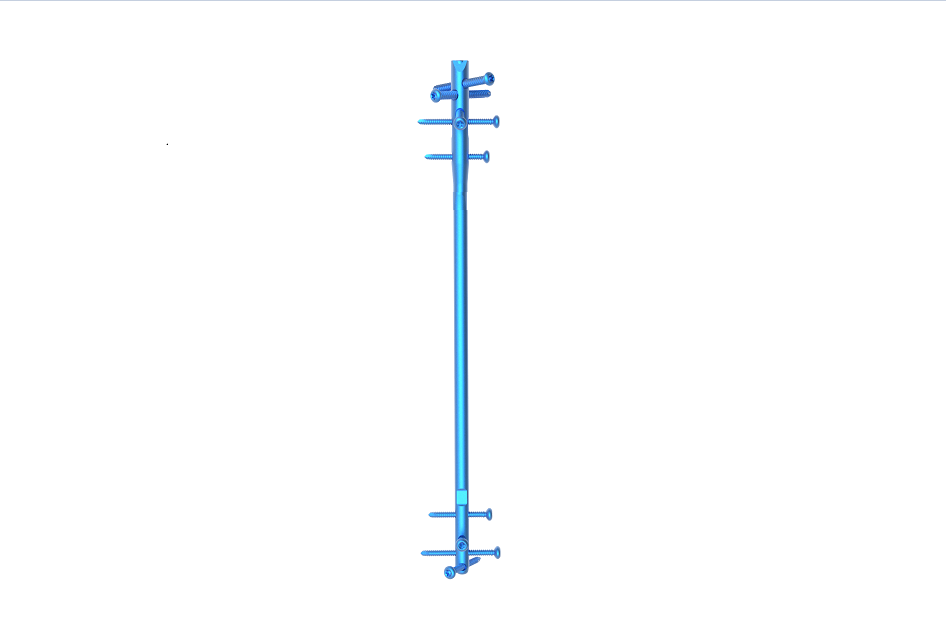

The MASTIN intramedullary nail is a long, thin rod that is inserted into the medullary canal of the tibia. The canal runs through the center of the tibia and provides a strong, stable environment for the nail to be fixed. The surgery is usually done through a small incision near the knee or ankle, and the intramedullary nail is inserted into it. Once the intramedullary nail is inserted, screws are used at each end to firmly fix it to the bone.
The intramedullary nail set consists of MASTIN tibial nail, end cap, DCD locking bolt, locking bolt etc parts.
Below are the specification of orthopedic intramedullary nail implant
|
MASTIN Tibial Nail
|
Φ8.0 x 270 mm |
| Φ8.0 x 280 mm | |
| Φ8.0 x 300 mm | |
| Φ8.0 x 310 mm | |
| Φ8.0 x 330 mm | |
| Φ8.0 x 340 mm | |
| Φ9.0 x 270mm | |
| Φ9.0 x 280 mm | |
| Φ9.0 x 300 mm | |
| Φ9.0 x 310 mm | |
| Φ9.0 x 330 mm | |
| Φ9.0 x 340 mm | |
| Φ10.0 x 270 mm | |
| Φ10.0 x 280 mm | |
| Φ10.0 x 300 mm | |
| Φ10.0 x 310 mm | |
| Φ10.0 x 330 mm | |
| Φ10.0 x 340 mm | |
| Φ10.0 x 360 mm | |
|
DCD Locking Bolt
|
Φ4.9 x 40 mm |
| Φ4.9 x 45 mm | |
| Φ4.9 x 50 mm | |
| Φ4.9 x 55mm | |
| Φ4.9 x 60 mm | |
| Φ4.9 x 65 mm | |
| Φ4.9 x 70 mm | |
| Φ4.9 x 75 mm | |
|
Locking Bolt for Φ8 & 9
|
Φ4.0 x 28 mm |
| Φ4.0 x 30 mm | |
| Φ4.0 x 32 mm | |
| Φ4.0 x 34 mm | |
| Φ4.0 x 36 mm | |
| Φ4.0 x 38 mm | |
| Φ4.0 x 40 mm | |
| Φ4.0 x 42 mm | |
| Φ4.0 x 44 mm | |
| Φ4.0 x 46 mm | |
| Φ4.0 x 48 mm | |
| Φ4.0 x 50 mm | |
| Φ4.0 x 52 mm | |
| Φ4.0 x 54 mm | |
| Φ4.0 x 56 mm | |
| Φ4.0 x 58 mm | |
|
Locking Bolt for Φ10
|
Φ5.0 x 26 mm |
| Φ5.0 x 28 mm | |
| Φ5.0 x 30 mm | |
| Φ5.0 x 32 mm | |
| Φ5.0 x 34 mm | |
| Φ5.0 x 36 mm | |
| Φ5.0 x 38 mm | |
| Φ5.0 x 40 mm | |
| Φ5.0 x 42 mm | |
| Φ5.0 x 44 mm | |
| Φ5.0 x 46 mm | |
| Φ5.0 x 48 mm | |
| Φ5.0 x 50 mm | |
| Φ5.0 x 52 mm | |
| Φ5.0 x 54 mm | |
| Φ5.0 x 56 mm | |
| Φ5.0 x 58 mm | |
| Φ5.0 x 60 mm | |
| Φ5.0 x 62 mm | |
| Φ5.0 x 64 mm | |
| Φ5.0 x 66 mm | |
| Φ5.0 x 68 mm | |
| MASTIN End Cap
|
+0 mm |
| +5 mm | |
| +10 mm |
