Orthopedic Instrument Lower Limb Locking Plate Instrument Set
Orthopedic Instrument Lower Limb Locking Plate Instrument Set
The lower limb locking plate instrument set is a surgical tool kit specifically designed for orthopedic surgeries involving the lower limbs. This instrument is essential for surgeons to perform surgeries to fix fractures or deformities of the femur, tibia, and fibula. The locking plate system is a modern advancement in orthopedic surgery, providing enhanced stability and support for bone healing.
The locking plate instrument typically includes various locking plates, screws, and instruments required for the implantation process. The orthopedic locking plate adopts a unique mechanism to lock the screws onto the steel plate, forming a fixed angle structure. This feature is particularly beneficial for complex fractures where traditional steel plate fixation methods cannot provide sufficient stability. The locking mechanism helps to maintain alignment of bone fragments and reduce the risk of malunion or non union.

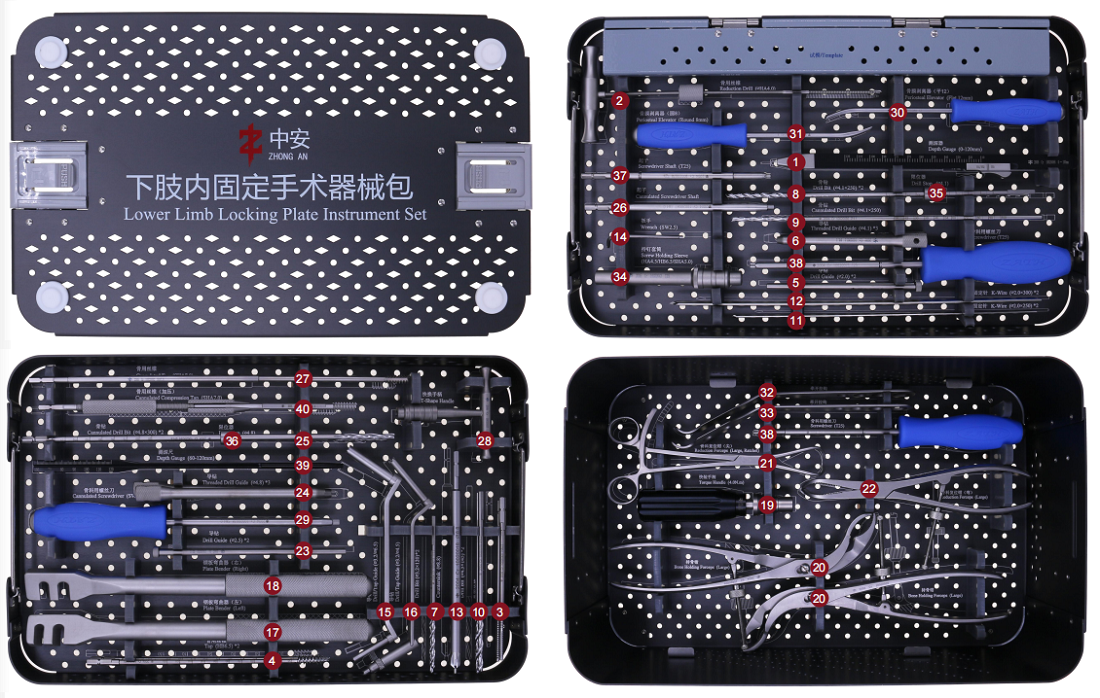

| Lower Limb Locking Plate Instrument Set | ||||
| Serial No. | Production Code | English Name | Specification | Quantity |
| 1 | 10020068 | Deepth Gauge | 0～120mm | 1 |
| 2 | 10020006 | Reduction Tap | HA4.0 | 1 |
| 3 | 10020008 | Bone Tap | HA4.5 | 2 |
| 4 | 10020009 | Bone Tap | HB6.5 | 2 |
| 5 | 10020010 | Drill Guide | ∅2 | 2 |
| 6 | 10020011 | Threaded Drill Guide | ∅4.1 | 3 |
| 7 | 10020013 | Drill Bit | ∅3.2*120 | 2 |
| 8 | 10020014 | Drill Bit | ∅4.1*250 | 2 |
| 9 | 10020085 | Drill Bit (Cannulated) | ∅4.1*250 | 1 |
| 10 | 10020015 | Drill Bit | ∅4.5*145 | 2 |
| 11 | 10020016 | K-Wire | ∅2.0X250 | 2 |
| 12 | 10020017 | K-Wire | ∅2.5X300 | 3 |
| 13 | 10020018 | Countersink | ∅8.8 | 1 |
| 14 | 10020020 | Wrench | SW2.5 | 1 |
| 15 | 10020022 | Drill/Tap Guide | ∅3.2/∅6.5 | 1 |
| 16 | 10020023 | Drill/Tap Guide | ∅3.2/∅4.5 | 1 |
| 17 | 10020025 | Plate Bender | Left | 1 |
| 18 | 10020026 | Plate Bender | Right | 1 |
| 19 | 10020028 | Torque Handle | 4.0N.M | 1 |
| 20 | 10020029 | Bone Holding Forceps | Large | 2 |
| 21 | 10020030 | Reduction Forceps | Large, Ratchet | 1 |
| 22 | 10020031 | Reduction Forceps | Large | 1 |
| 23 | 10020032 | Drill Guide | ∅2.5 | 2 |
| 24 | 10020033 | Threaded Drill Guide | ∅4.8 | 3 |
| 25 | 10020034 | Cannulated Drill Bit | ∅4.8*300 | 2 |
| 26 | 10020087 | Cannulated Screwdriver Shaft | SW4.0 | 1 |
| 27 | 10020092 | Cannulated Bone Tap | SHA7.0 | 1 |
| 28 | 10020037 | T-Shape Handle | T-Shape | 1 |
| 29 | 10020038 | Cannulated Screwdriver | SW4.0 | 1 |
| 30 | 10020088 | Periosteal Elevator | Flat 12 | 1 |
| 31 | 10020040 | Periosteal Elevator | Round 8 | 1 |
| 32 | 10020041 | Retractor | 16mm | 1 |
| 33 | 10020042 | Retractor | 44mm | 1 |
| 34 | 10020043 | Screw Holding Sleeve | HA4.5/HB6.5 | 1 |
| 35 | 10020072 | Drill Stop | ∅4.1 | 1 |
| 36 | 10020073 | Drill Stop | ∅4.8 | 1 |
| 37 | 10020070 | Screwdriver Shaft | T25 | 1 |
| 38 | 10020071 | Screwdriver | T25 | 2 |
| 39 | 10020086 | Deepth Gauge | 60-120mm | 1 |
| 40 | 10020089 | Compression Bone Tap | SHA7.0 | 1 |
| 41 | 10020081 | Instrument Box | 1 | |
