Surgical Orthopedic Implant Titanium ZAFIN Intramedullary Nail
intramedullary nail Description

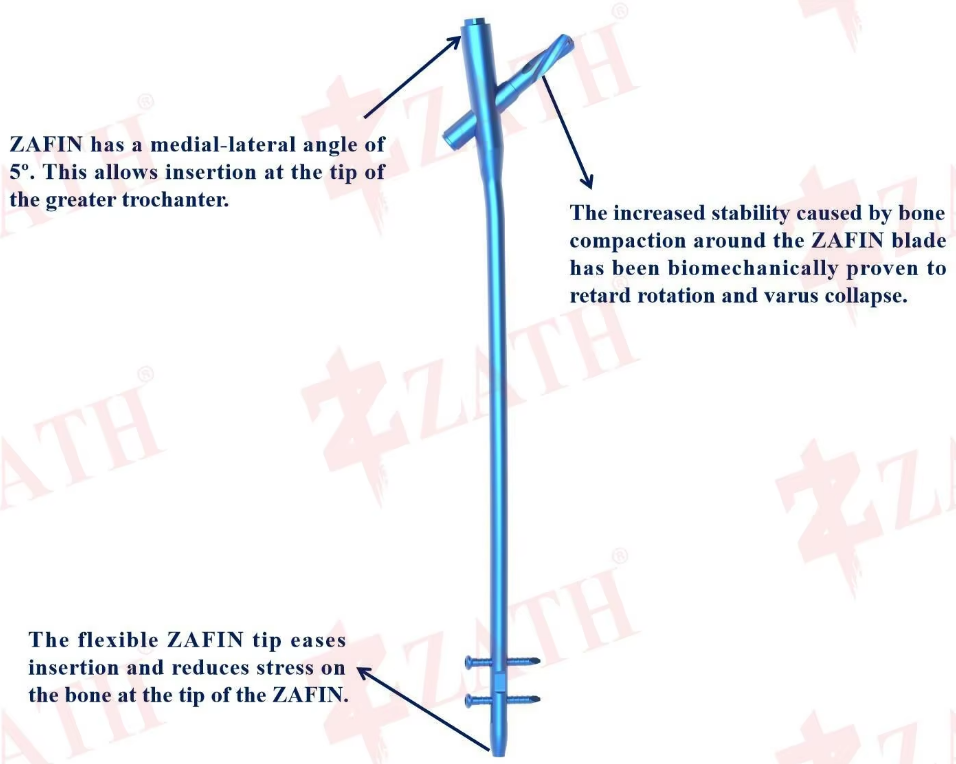

ZAFIN Proximal Femur Nail Standard
Indications:
● Pertrochanteric fractures (31-A1 and 31-A2)
● Intertrochanteric fractures (31-A3)
● High subtrochanteric fractures (32-A1)
Femur Intramedullary Nail Contraindications:
● Low subtrochanteric fractures
● Femoral shaft fractures
● Isolated or combined medial femoral neck fractures
ZAFIN Intramedullary Nail Long
Indications:
● Low and extended subtrochanteric fractures
● Ipsilateral trochanteric fractures
● Combination fractures (in the proximal femur)
● Pathological fractures
Interlocking Nail Contraindications:
● Isolated or combined medial femoral neck fractures
interlocking nail Indications
| ZAFIN Femoral Nail (Standard) | Φ9.0 x 180 mm
Φ9.0 x 200 mm Φ9.0 x 240 mm Φ10.0 x 180 mm Φ10.0 x 200 mm Φ10.0 x 240 mm Φ11.0 x 180 mm Φ11.0 x 200 mm Φ11.0 x 240 mm Φ12.0 x 180 mm Φ12.0 x 200 mm Φ12.0 x 240 mm |
|
ZAFIN Femoral Nail (Long) |
Φ9.0 x 320 mm (Left)
Φ9.0 x 340 mm (Left)
|
| 4.9 Locking Bolt | Φ4.9 x 26 mm
Φ4.9 x 28 mm |
| ZAFIN End Cap | +0 mm
+5 mm +10 mm |
| ZAFIN End Cap (Long) | +0 mm
+5 mm +10 mm |
